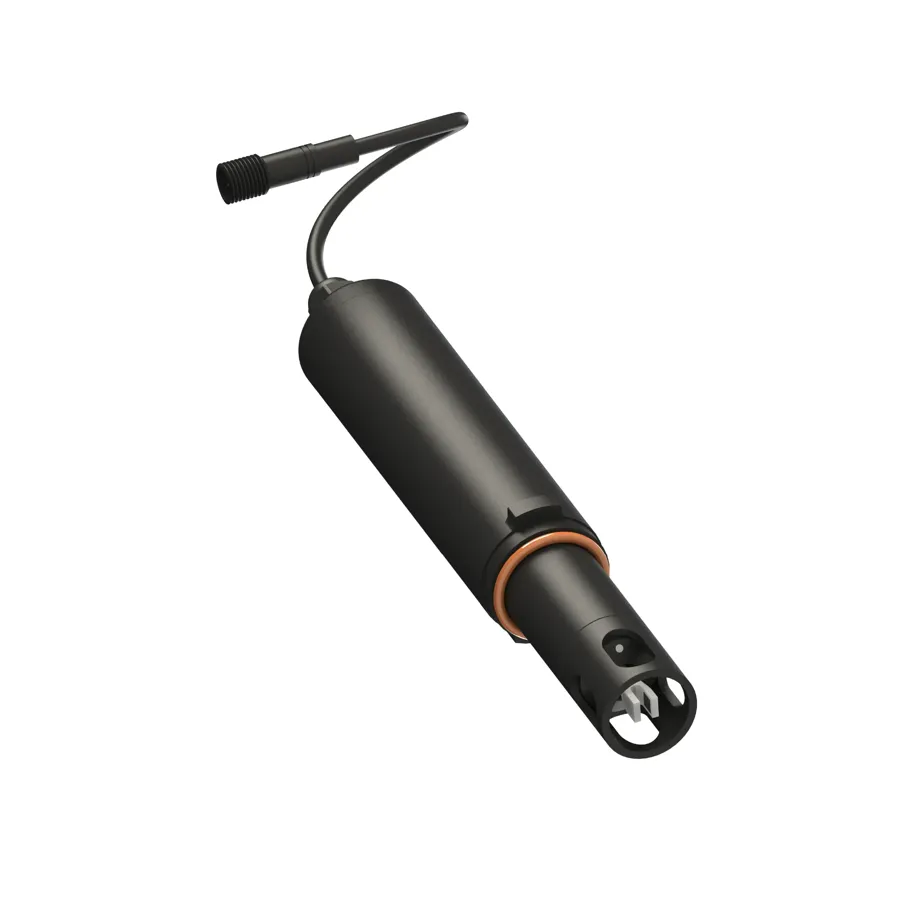

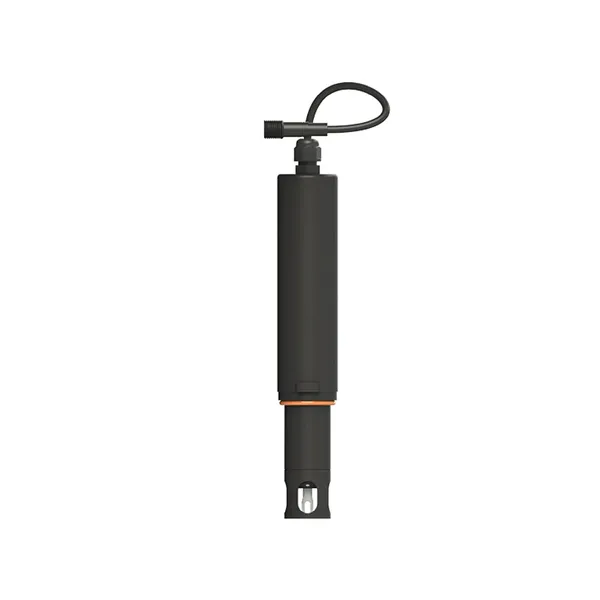

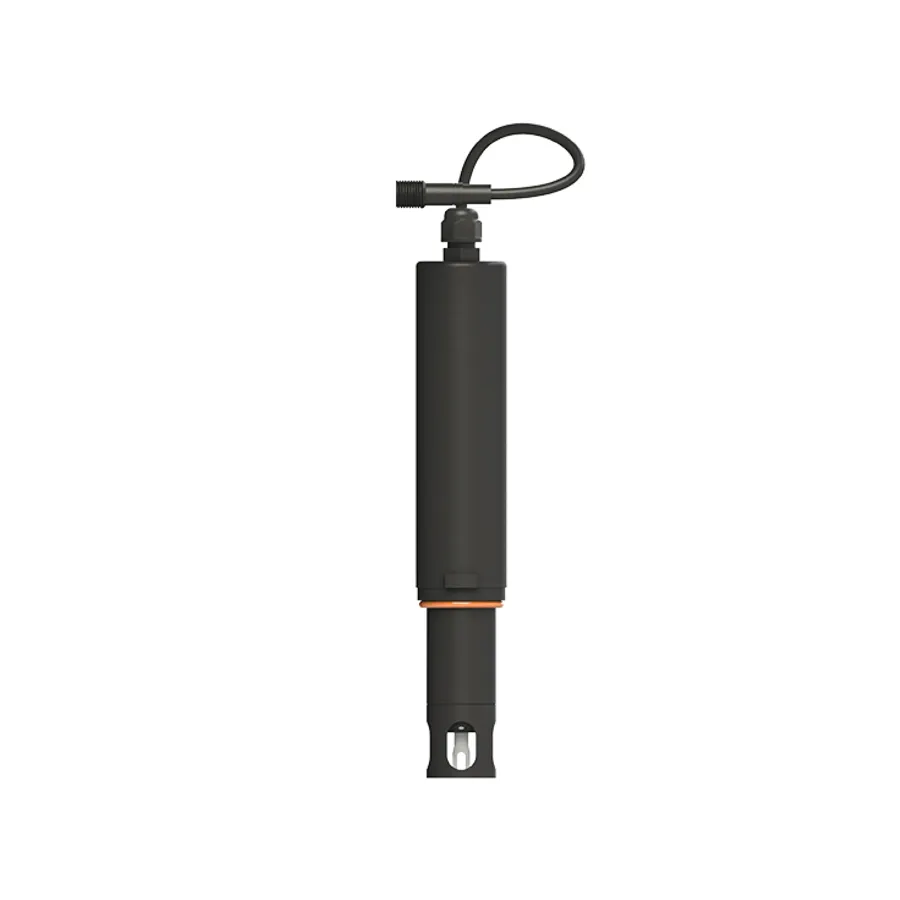

Digital Conductivity Sensor YG-AP/30
The digital conductivity / TDS sensor is a digital sensor developed by YuanGan for online drinking-water quality monitoring, with the digital circuit integrated inside the sensor. It monitors conductivity / TDS and temperature in real time, using an RS-485 interface and the Modbus-RTU communication protocol.
Typical applications
- Domestic Drinking Water
- Surface Water
- Groundwater
- Online conductivity monitoring of wastewater and more
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Isolated power supply design
Stable data with strong interference immunity
- 02
Built-in protection circuit
Enhanced interference immunity for harsh environments
- 03
Temperature compensation
Wide range of applicable environments
- 04
Suitable for long-term underwater operation
Corrosion-resistant housing, IP68 waterproof rating
- 05
Digital sensor
RS485 communication interface, standard Modbus protocol
- 06
Low-power design
Suits more applications; onboard memory keeps calibration and settings through power loss.
Technical Specifications
| Conductivity / TDS specifications | |
|---|---|
| Range: | Conductivity: 0–2000 μS/cm TDS: 0–1000 mg/L, 0–10000 mg/L |
| Resolution: | Conductivity: 0.01 μS/cm TDS: 0.01 mg/L |
| Limit of detection: | Conductivity: 6 μS/cm TDS: 3 mg/L |
| Accuracy: | ±0.8%F.S. |
| Repeatability: | 0.4%F.S. |
| Measurement method: | Conductivity cell method (automatic temperature compensation) |
| Calibration method: | One-point calibration |
| Response time (T90): | ≤30 s |
| Temperature specifications | |
| Range: | -5 °C-60 °C |
| Resolution: | 0.1 °C |
| Accuracy: | ±0.4 °C |
| Repeatability: | 0.2 °C |
| Measurement method: | Thermistor method |
| Calibration method: | One-point calibration |
| Response time (T90): | ≤25 s |
| System parameters | |
| Operating voltage: | DC9–28 V |
| Peak power: | 0.5 W |
| Measured parameters: | Conductivity, TDS, temperature |
| Digital output: | RS485, Modbus protocol, 4–20 mA |
| Operating temperature: | -5 °C-45 °C (non-freezing) |
| Ingress protection: | IP68 |
| Dimensions: | 201mm*φ32 |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
