Single-Parameter Analyzers
pH Online Analyzer YG-DH7
The pH online analyzer is an intelligent online water quality analyzer. It uses imported components, advanced production processes and measurement-and-control technology to keep the instrument stable, reliable and accurate over long-term operation.
Typical applications
- Water Treatment Plants
- Water Distribution Network
- Swimming Pools
- Cooling Circulating Water
- Water Treatment Projects
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Overview

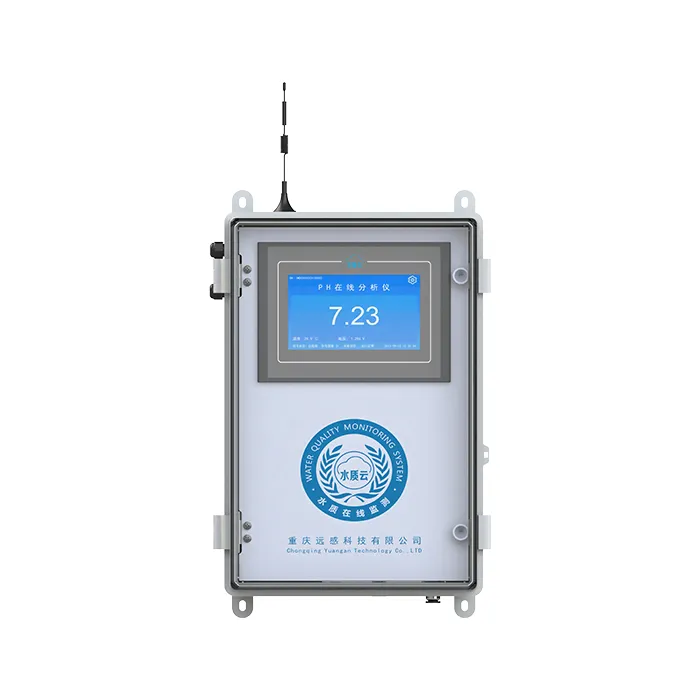

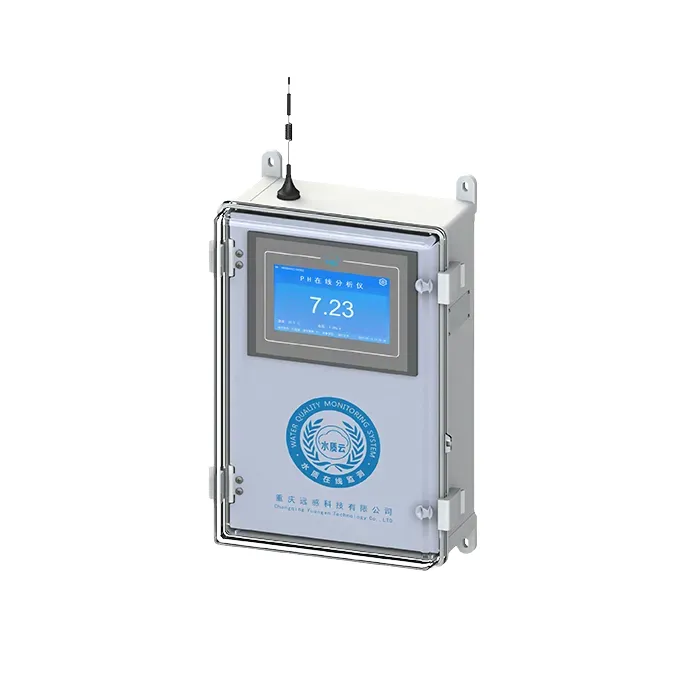

The pH online analyzer is an intelligent online water quality analyzer. It uses imported components, advanced production processes and measurement-and-control technology to keep the instrument stable, reliable and accurate over long-term operation.
The pH online analyzer has a large color touchscreen interface and supports remote monitoring through the cloud platform and mobile devices. The transmitter outputs pH and temperature over RS485.
It is used for continuous monitoring and control of pH in water treatment plants, distribution networks, swimming pools, cooling circulating water, water treatment projects and other aqueous solutions.
Key features
- 01
pH and temperature values output simultaneously
Simultaneous output: pH value, temperature value
- 02
4–20 mA output
Analog output (optional)
- 03
Better data presentation
7-inch color touchscreen
- 04
Network capability
Supports remote data monitoring via the cloud platform and mobile devices, plus RS485-Modbus communication
- 05
View data anytime, anywhere
Works with the Water Quality Cloud platform
Technical Specifications
| Operating voltage: | 100–240VAC, 50/60 Hz |
|---|---|
| Power: | 10 W (peak power) |

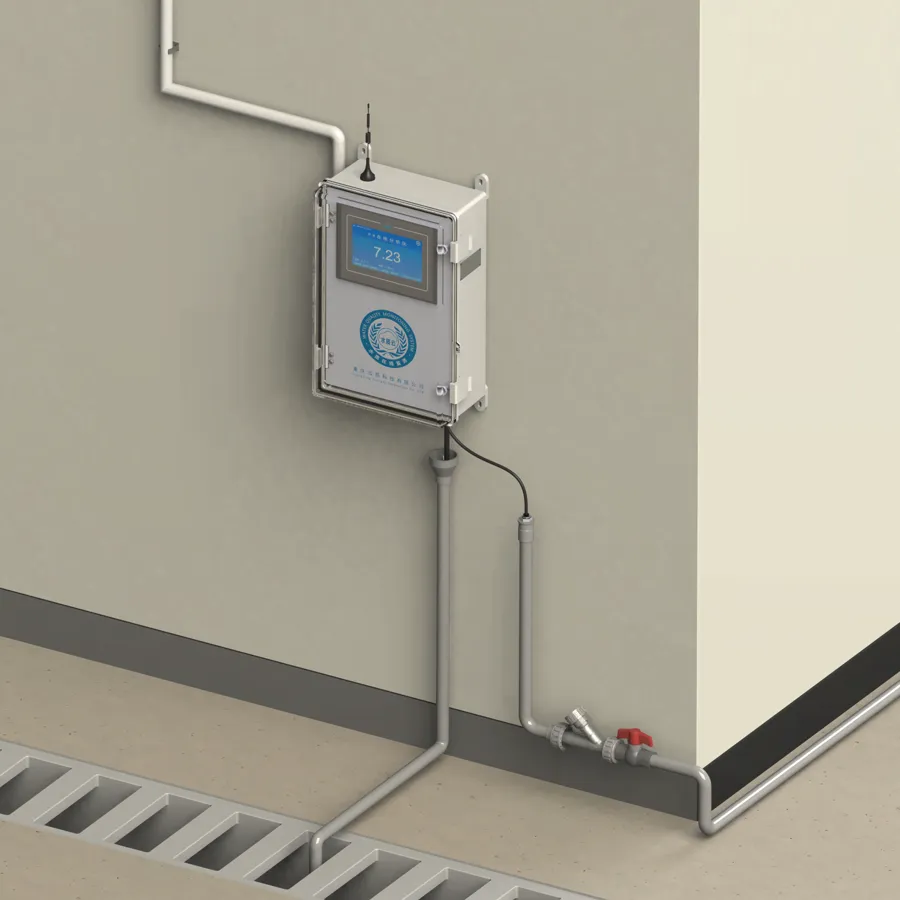

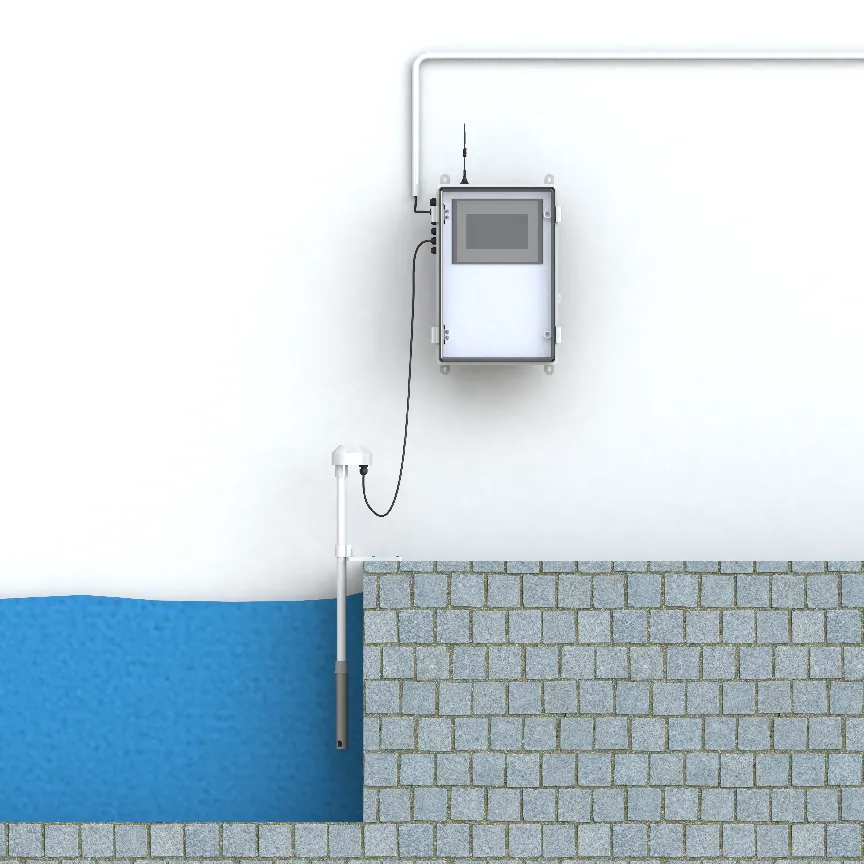

| Operating mode: | Flow-through / submersible (optional) |
| Sample flow velocity: | Not less than 400 mL/min |
| Range: | pH: 0–14 pH Temperature: –5 to 60 °C |
| Resolution: | pH: 0.01 pH Temperature: 0.1 °C |
| Accuracy: | PH: ± 0.05pH Temperature: ±0.4 °C |
| Measurement method: | pH: electrochemical (electrode) method Temperature: thermistor method |
| Operating temperature: | -5–45 °C |
| Dimensions: | 300 × 450 × 170 mm (W × H × D) |
| Housing material: | ABS |
| Digital output: | RS485 Modbus protocol (4–20 mA optional) (baud rate 9600, 8, N, 1) |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
Request a quote for YG-DH7
Tell us your application, parameters and volume. Our export team replies by email or WhatsApp.
