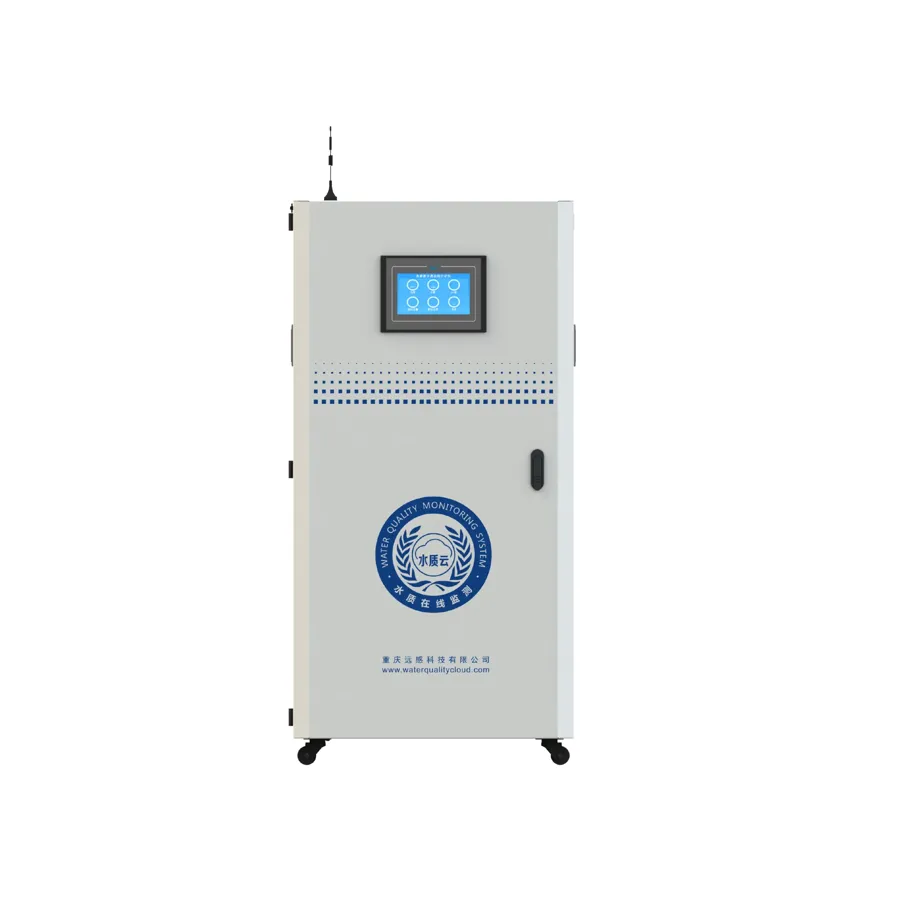

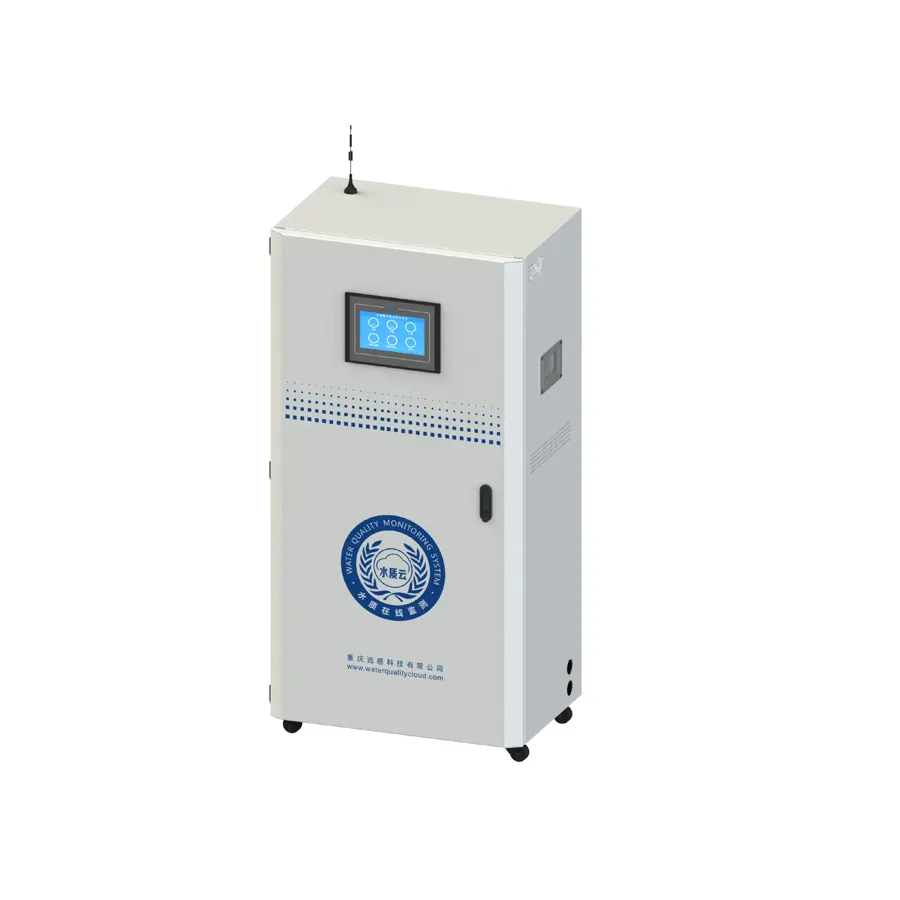

Cabinet Multi-Parameter Online Analyzer YG-HSY
The multi-parameter online water quality analyzer is YuanGan's new-generation drinking-water quality monitoring instrument, developed and manufactured in-house. It is an essential online analyzer for process control in water plants, water utility management, sanitary supervision and water environment monitoring. YuanGan masters the core sensor technology of this product, owns its core intellectual property, and offers OEM customization.
Typical applications
- Water Treatment Plants
- Water Transmission Network
- Secondary Water Supply
- End Users
- Swimming Pool Water
- Surface Water
- Direct Drinking Water
- Large water purification equipment and more
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Overview
The multi-parameter online water quality analyzer is YuanGan's new-generation drinking-water quality monitoring instrument, developed and manufactured in-house. It is an essential online analyzer for process control in water plants, water utility management, sanitary supervision and water environment monitoring. YuanGan masters the core sensor technology of this product, owns its core intellectual property, and offers OEM customization.
The multi-parameter online water quality analyzer is available in standard and custom versions. The standard version monitors turbidity, free chlorine / chlorine dioxide / ozone / total chlorine / trichloroisocyanuric acid, pH, ORP, temperature, conductivity / TDS, dissolved oxygen and more. The custom version can omit parameters and customize the instrument appearance, logo, system name and other items as required.
The multi-parameter online water quality analyzer is an intelligent terminal of the drinking water safety Internet of Things and can connect directly to the Water Quality Cloud platform and the Water Quality Cloud WeChat mobile client.
Key features
- 01
Accurate and reliable measurement
Digital sensors developed in-house with proprietary IP and a leading technical edge
- 02
Easy to install and maintain
Field experience is built into the design, so you get professional results from day one
- 03
Project customization supported
Flexible choice of parameters and appearance to meet project and customer needs
- 04
Third-party expansion supported
Connect external COD, ammonia nitrogen, water pressure, level and flow sensors to build a simple control system
- 05
Multi-interface IoT
4G, RS485, multi-channel 4–20 mA; WeChat, browser, Web API
Technical Specifications
| Optional parameters | Turbidity, disinfectant (free chlorine / chlorine dioxide / ozone / total chlorine / trichloroisocyanuric acid), pH, ORP, conductivity, TDS, dissolved oxygen and temperature etc. |
|---|---|
| External parameters | COD, ammonia nitrogen, water pressure, water level, flow etc. |
| Measurement method | |
| Turbidity | 90° laser scattering method (laser light source) |
| Disinfectant | Reagent-free electrochemical three-electrode amperometric system |
| pH/ORP | Electrochemical (electrode) method |
| Conductivity/TDS | Conductivity cell method (automatic temperature compensation) |
| Dissolved oxygen | Fluorescence method |
| Temperature | Thermistor method |
| Range | |
| Turbidity | 0–100 NTU |
| Disinfectant | 0–5/20 mg/L |
| pH | 0–14 |
| ORP | ±2000 mV |
| Conductivity | 0–20 (pure water) / 20000 (standard) μS/cm |
| TDS | 0–10 (pure water) / 10000 (standard) mg/L |
| Dissolved oxygen | 0–20 mg/L (0–20 ppm), 0–200% saturation |
| Temperature | -5–60 °C |
| Accuracy | |
| Turbidity | 2% or ±0.02 NTU (whichever is greater); (based on Formazin primary standard at 25 °C) |
| Disinfectant | ±3% (DPD correlation error ±10% or ±0.05mg/Lwhichever is greater) |
| pH | ±0.05 (based on standard solution) |
| ORP | ±20 mV (based on standard solution) |
| Conductivity/TDS | Pure water ±3% F.S.; standard ±0.8% F.S. (based on standard solution) |
| Dissolved oxygen | ±3% or ±0.2 mg/L (whichever is greater) |
| Temperature | ±0.4 °C |
| Resolution | |
| Turbidity | 0.0001 NTU(<1 NTU), 0.001 NTU(≥1 NTU) |
| Disinfectant | 0.001 mg/L |
| pH | 0.01 |
| ORP | 1 mV |
| Conductivity | 0.01μS/cm |
| TDS | 0.01 mg/L |
| Dissolved oxygen | 0.01 mg/L |
| Temperature | 0.1 °C |
| System parameters | |
| Installation | Cabinet-mounted |
| Dimensions (W × H × D) | 600 × 1150 × 400 mm (W × H × D) |
| Housing material | 304 stainless steel |
| Display | 7-inch color touchscreen, multi-language support |
| Operating voltage | 100 – 240VAC,50/60Hz |
| Digital output | RS485 Modbus RTU communication protocol + wireless data interface |
| Analog output | 6-channel isolated 4–20 mA output (external expansion module required) |
| IoT | 4G (browser, WeChat and Web API access supported) |
| Inlet pressure | ≤0.5MPa |
| Sample flow | Adjustable range: 500–1000 mL/min (recommended 700 mL/min) |
| Sample inlet fitting | Φ10 mm (OD) push-in fitting |
| Sample outlet fitting | Φ25 mm (OD) PVC tube |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
