Kits & Rapid Detection

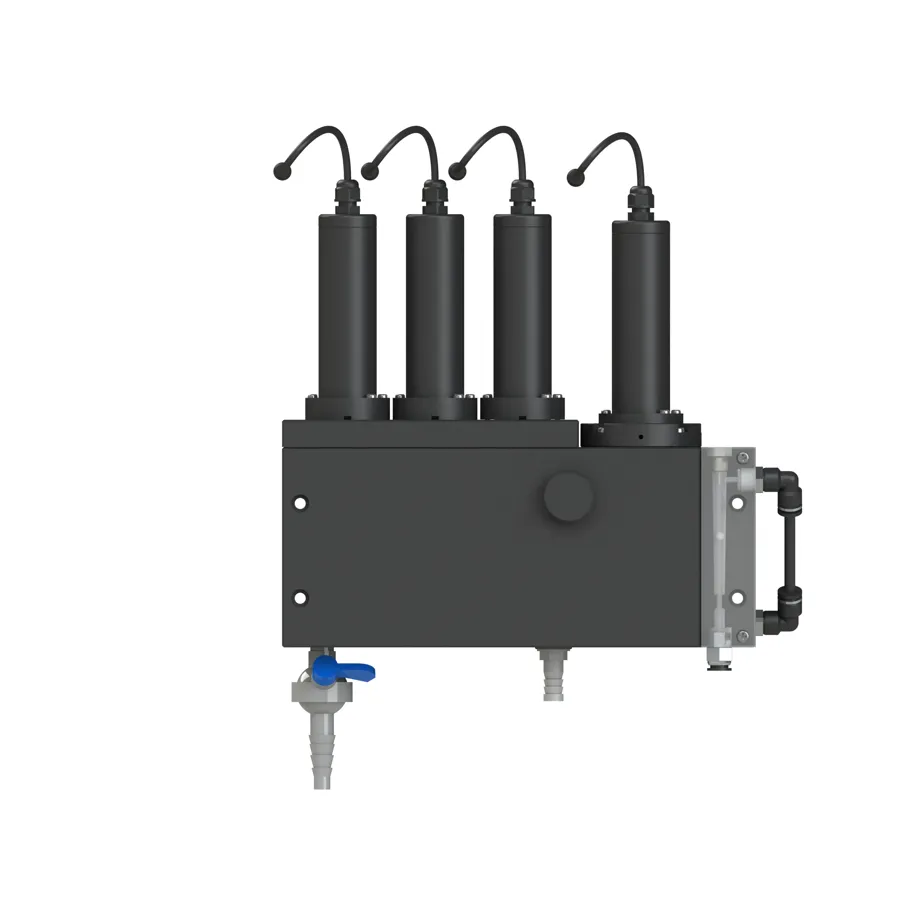

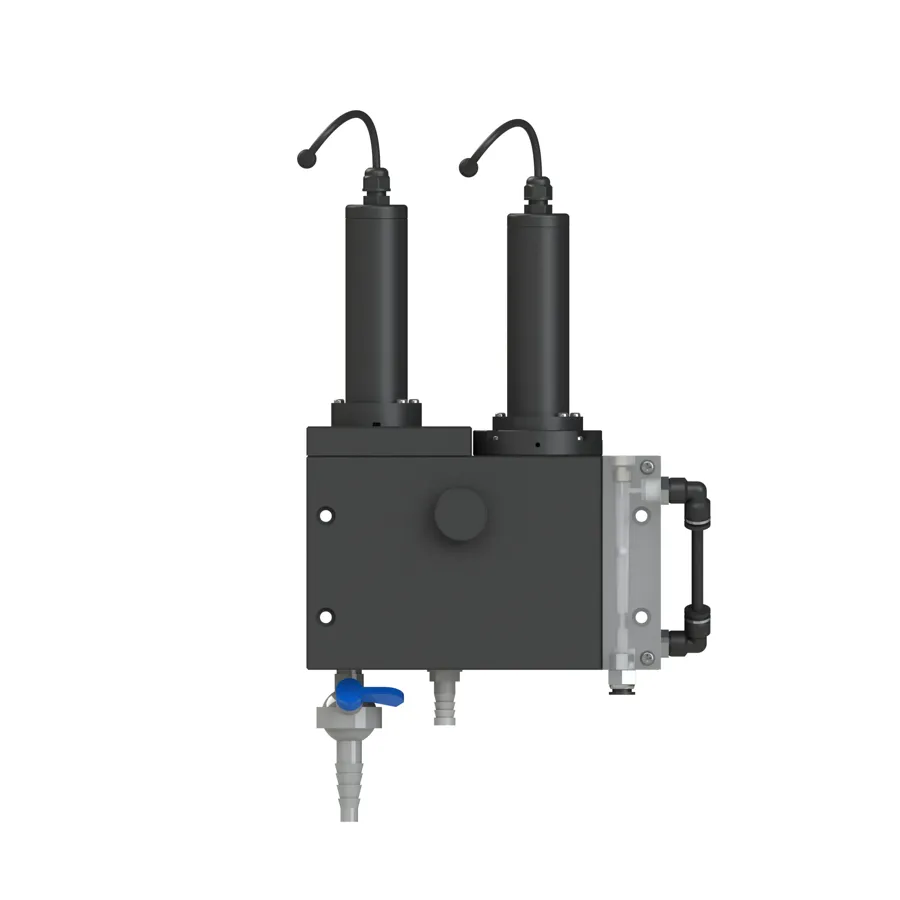

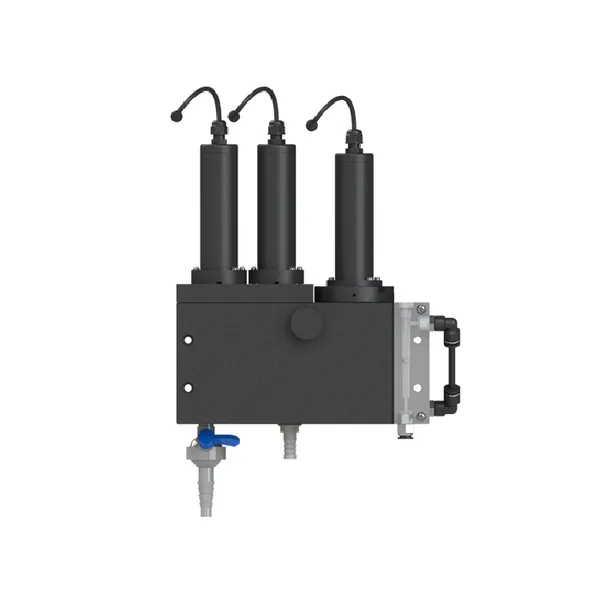

Multi-Parameter Kit YG-NFC
This multi-parameter kit uses an integrated flow cell with a range of YuanGan digital sensors. It is compact, takes little space and is easy for users to integrate into their systems. Users can choose any combination of turbidity, disinfectant (free chlorine / chlorine dioxide / ozone / total chlorine / trichloroisocyanuric acid), pH, ORP, pH/ORP, conductivity and dissolved oxygen.
Typical applications
- Water Treatment Plants
- Water Distribution Network
- Swimming Pools
- Cooling Circulating Water
- Water Treatment Projects
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Simultaneous multi-parameter output
Turbidity, disinfectant, pH, ORP, conductivity, dissolved oxygen, temperature value
- 02
Highly integrated
Integrated flow cell combines multiple monitoring parameters
- 03
Built-in regulating valve
Inlet flow can be adjusted to site conditions
- 04
Transparent acrylic flow meter
Shows in real time whether inlet flow is within the normal range
Technical Specifications
| System parameters | |
|---|---|
| Compatible sensors: | Turbidity, disinfectant (free chlorine / total chlorine / chlorine dioxide / ozone / trichloroisocyanuric acid), pH, ORP, pH/ORP, conductivity, TDS, dissolved oxygen |
| Dimensions: | 237 × 336 × 68 mm (W × H × D, sensor included) |
| Weight: | Approx. 2.1 kg (sensor included) |
| Material: | ABS+POM |
| Sample flow rate: | 0.5-1L/min |
Ordering Information
| Product Name | Model |
|---|---|
| Flow cell | YG-PFH/13 (DP membraneless disinfectant sensor) |
| YG-PFH/23 (DPM membrane-covered disinfectant sensor) | |
| Low-range turbidity sensor | YG-T1/11 |
| Mid-range turbidity sensor | YG-T2/21 |
| Membraneless free chlorine sensor | YG-CP/DP |
| Membraneless chlorine dioxide sensor | YG-CP/11 |
| Membraneless ozone sensor | YG-CP/21 |
| Membrane-covered free chlorine sensor | YG-CM/DPM |
| Membrane-covered chlorine dioxide sensor | YG-CM/11 |
| Membrane-covered ozone sensor | YG-CM/21 |
| Membrane-covered total chlorine sensor | YG-CM/31 |
| Membrane-covered trichloroisocyanuric acid sensor | YG-CM/41 |
| Digital pH sensor | YG-DHC/01 |
| Digital ORP sensor | YG-DR/21 |
| Digital pH/ORP sensor | YG-DX/01 |
| Digital conductivity/TDS sensor | YG-AP/30 |
| Digital dissolved oxygen sensor | YG-FD/32 |
