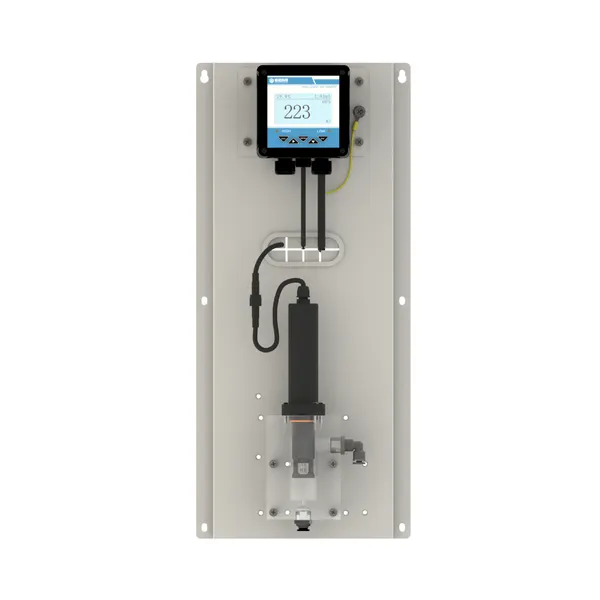

ORP Online Analyzer YG-NHR/01

YG-NHR/01Former model: YG-UK/KA

The ORP online analyzer is a product independently developed by YuanGan for online water quality monitoring. A universal controller works together with an ORP sensor to continuously monitor ORP in the solution. The data can be sent to a recorder through the transmitter output for remote monitoring and logging, or connected to a computer through the RS485 interface using the Modbus-RTU protocol, so the computer can monitor and record the instrument.

Typical applications

Water Treatment Plants
Distribution Network
Secondary Water Supply
Network Ends
Swimming Pools

Request a quote WhatsApp

yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466

Key features

01
Stable measurement
02
Fast response time
03
Long-term maintenance-free operation
04
Low-power design with temperature compensation
05
Isolated electrode power supply with strong interference immunity

Technical Specifications

Controller parameters
Peak power:	6 W
Operating voltage:	AC100–240 V; DC24 V (optional)
Operating temperature:	0–60°C
Operating humidity:	10%~95%RH (non-condensing)
Storage temperature:	-15–65 °C (sensor not included)
Screen size:	2.8 -inch LCD display
Relays:	One set each of high / low limit alarms (250VAC/3A), normally open contact relay
Digital output:	RS485, Modbus protocol
Analog output:	Isolated 4–20 mA transmitter output, max. loop 750 Ω, ±0.2% F.S.
Sensor parameters
Range:	-2000 mV ~ +2000 mV
Resolution:	1 mV
Limit of detection:	1 mV
Accuracy:	±20 mV
Repeatability:	10 mV
Measurement method:	Electrochemical (electrode) method
Calibration method:	One- or two-point calibration
Response time (T90):	≤60 s
Electrode material:	Single platinum ring
System parameters
Backplate dimensions:	230 × 510 mm (W × H)
Backplate material:	304 stainless steel
Installation:	Wall-mounted
(Note: specifications may change with product improvements; YuanGan reserves the right to modify them.)
