Accessories & Flow Cells

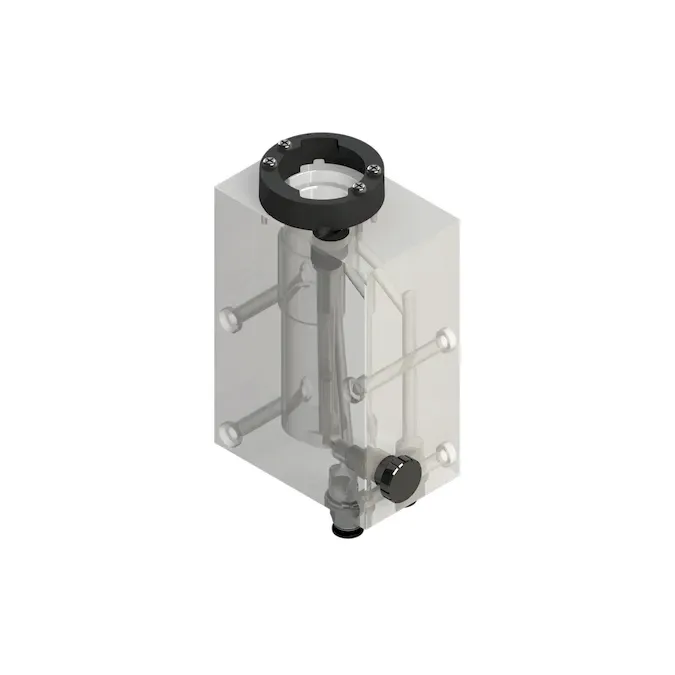

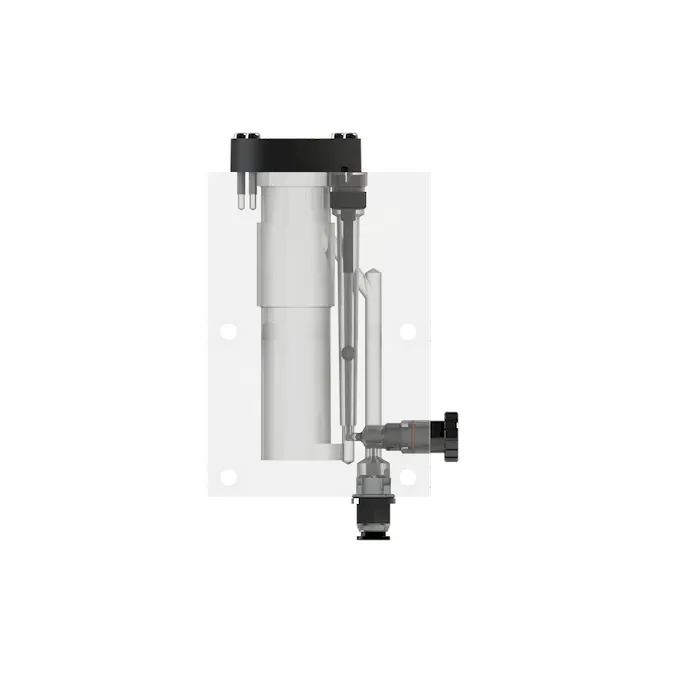

Pressurized Flow Cell YG-QDD
This pressurized flow cell is designed for a range of YuanGan digital sensors and suits pressurized operating conditions. It has a built-in precision inlet regulating valve and is made of high-strength transparent acrylic so the flow can be observed in real time; it withstands pressure to run stably under pressurized conditions and keep measurement data accurate and reliable.
Typical applications
- Water Treatment Plants
- Water Distribution Network
- Swimming Pools
- Cooling Circulating Water
- Water Treatment Projects
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Built-in regulating valve
Inlet flow can be adjusted to site conditions
- 02
Transparent acrylic flow meter
Shows in real time whether inlet flow is within the normal range
- 03
Designed for pressurized operation
Suited to pressurized operation with excellent sealing
- 04
Compatible with multiple digital sensors
Suitable for YuanGan disinfectant, pH, ORP, pH/ORP and dissolved oxygen sensors
Technical Specifications
| System parameters | |
|---|---|
| Compatible sensors: | Disinfectant (free chlorine / chlorine dioxide / ozone / total chlorine / trichloroisocyanuric acid), pH, ORP, pHORP, dissolved oxygen etc. |
| Dimensions: | 90 × 146 × 48 mm (W × H × D) |
| Material: | Acrylic |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
Request a quote for YG-QDD
Tell us your application, parameters and volume. Our export team replies by email or WhatsApp.
