Single-Parameter Analyzers

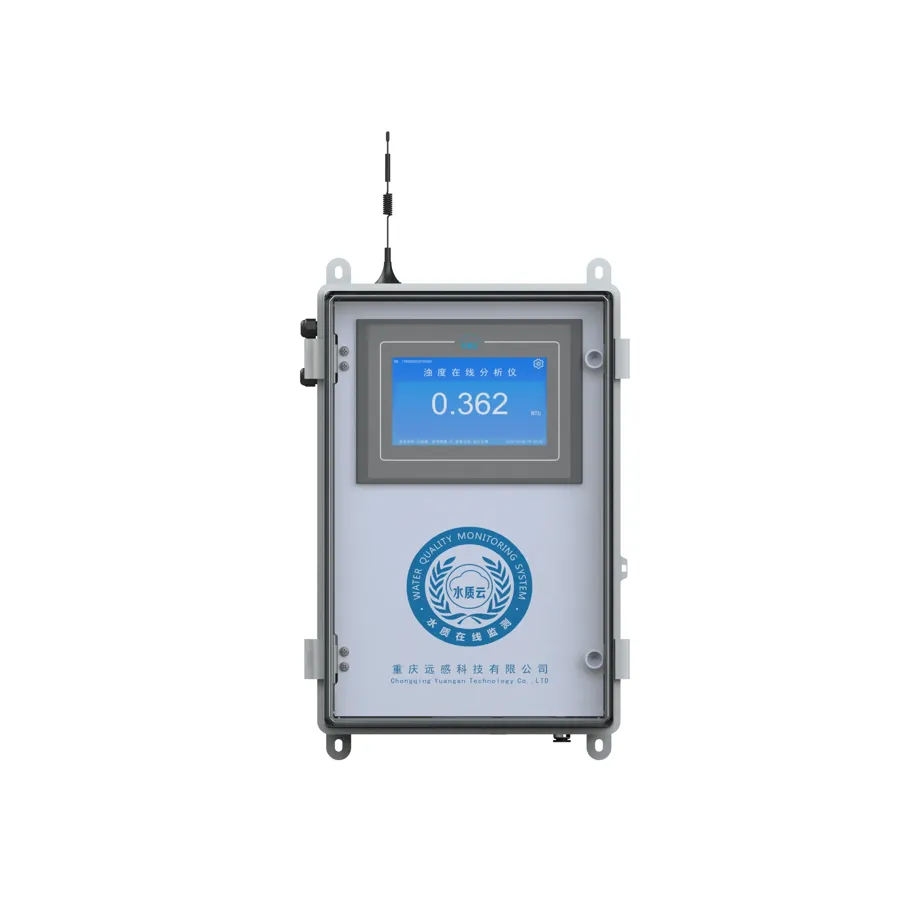

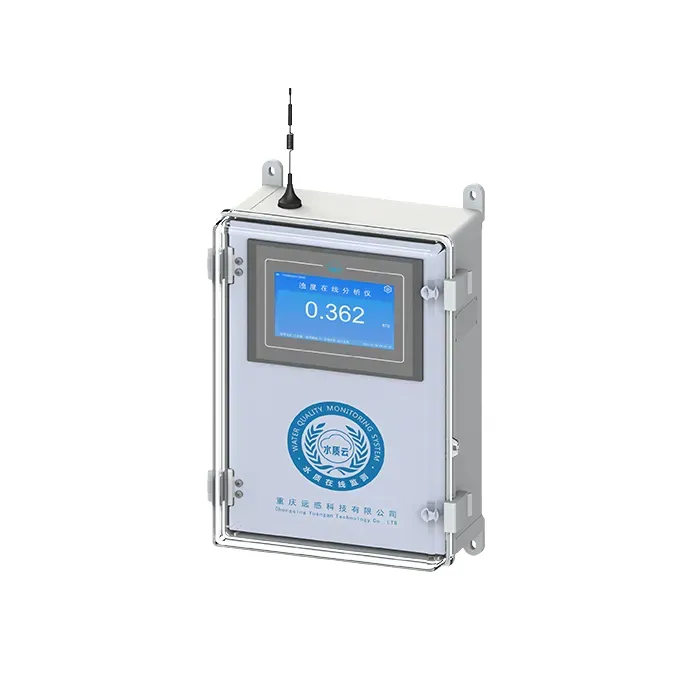

Turbidity Online Analyzer YG-T17
The turbidity online analyzer is a proprietary patented product developed by YuanGan for online drinking-water quality monitoring. It offers an ultra-low detection limit, high-precision measurement and long maintenance-free operation, supports remote monitoring through the cloud platform and mobile devices, and is widely used for online turbidity monitoring of treated water at the plant outlet, secondary water supply, network-end tap water, direct drinking water, membrane-filtered water, swimming pools, surface water and more.
Typical applications
- Treated Water (Plant Outlet)
- Secondary Water Supply
- Network-End (Tap) Water
- Direct Drinking Water
- Membrane-Filtered Water
- Swimming Pool Water
- Surface Water
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Overview
The turbidity online analyzer is a proprietary patented product developed by YuanGan for online drinking-water quality monitoring. It offers an ultra-low detection limit, high-precision measurement and long maintenance-free operation, supports remote monitoring through the cloud platform and mobile devices, and is widely used for online turbidity monitoring of treated water at the plant outlet, secondary water supply, network-end tap water, direct drinking water, membrane-filtered water, swimming pools, surface water and more.

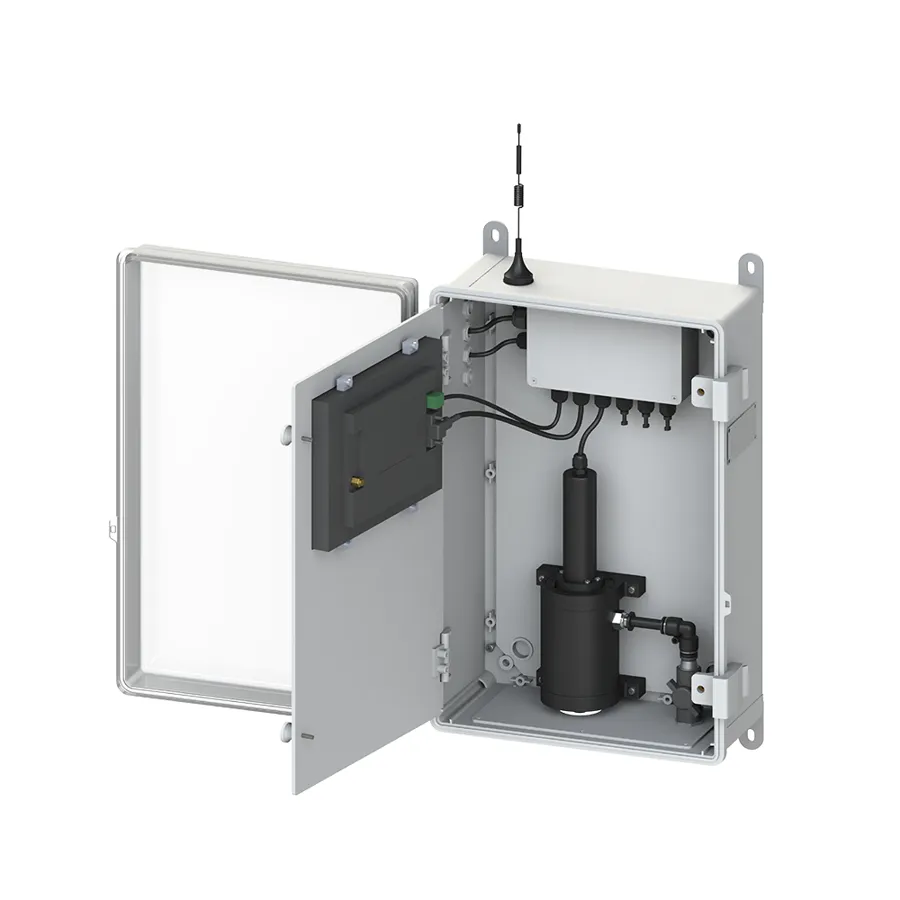

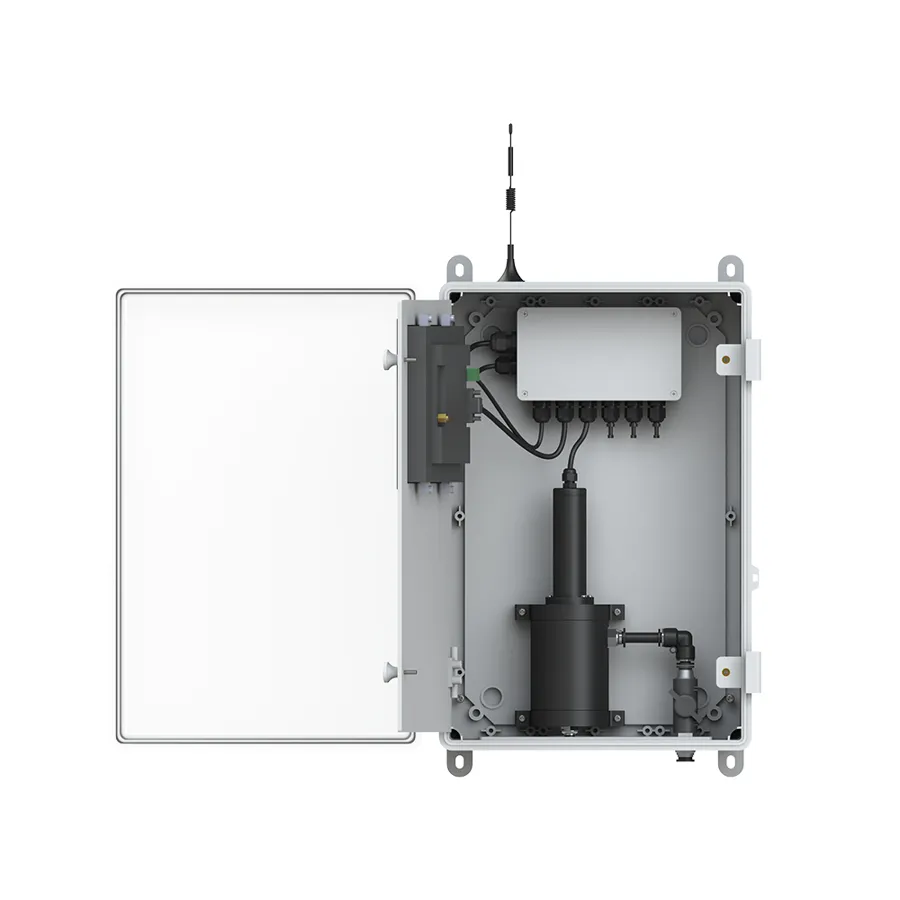

Built-in sensor: YuanGan T-series turbidity sensor.
Key features
- 01
Higher measurement accuracy
Built-in laser sensor
- 02
Suits complex operating conditions
Flow-through or submersible (optional)
- 03
Better data presentation
7-inch color touchscreen
- 04
Remote data access supported
Built-in 4G module
- 05
View data anytime, anywhere
Works with the Water Quality Cloud platform
Technical Specifications
| Operating voltage: | 100–240VAC, 50/60 Hz |
|---|---|
| Peak power: | 12 W |
| Measurement method: | 90° laser scattering method (laser light source) |
| Laser light source: | 860nm laser |
| Range: | 0–100/1000/4000 NTU |
| Resolution: | 0–100 NTU: 0.001 NTU 0–1000 NTU: 0.01 NTU 0–4000 NTU: 0.1 NTU |
| Limit of detection: | 0–100 NTU: 0.01 NTU 0–1000/4000 NTU: 0.05 NTU |
| Accuracy: | 0–100 NTU: 2% or ±0.05 NTU (whichever is greater); 0–1000 NTU: 5% or ±0.5 NTU (whichever is greater); 0–4000 NTU: 5%FS; (based on Formazin primary standard at 25 °C) |
| Repeatability: | 0–100/1000 NTU: 1% 0–4000 NTU: 2.5%FS |
| Response time: | ≤120 s |
| Operating temperature: | -5–45 °C (non-freezing) |
| Dimensions: | 300 × 450 × 170 mm (W × H × D) |
| Housing material: | ABS |
| Digital output: | RS485 Modbus protocol (4–20 mA optional) |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
