Single-Parameter Analyzers

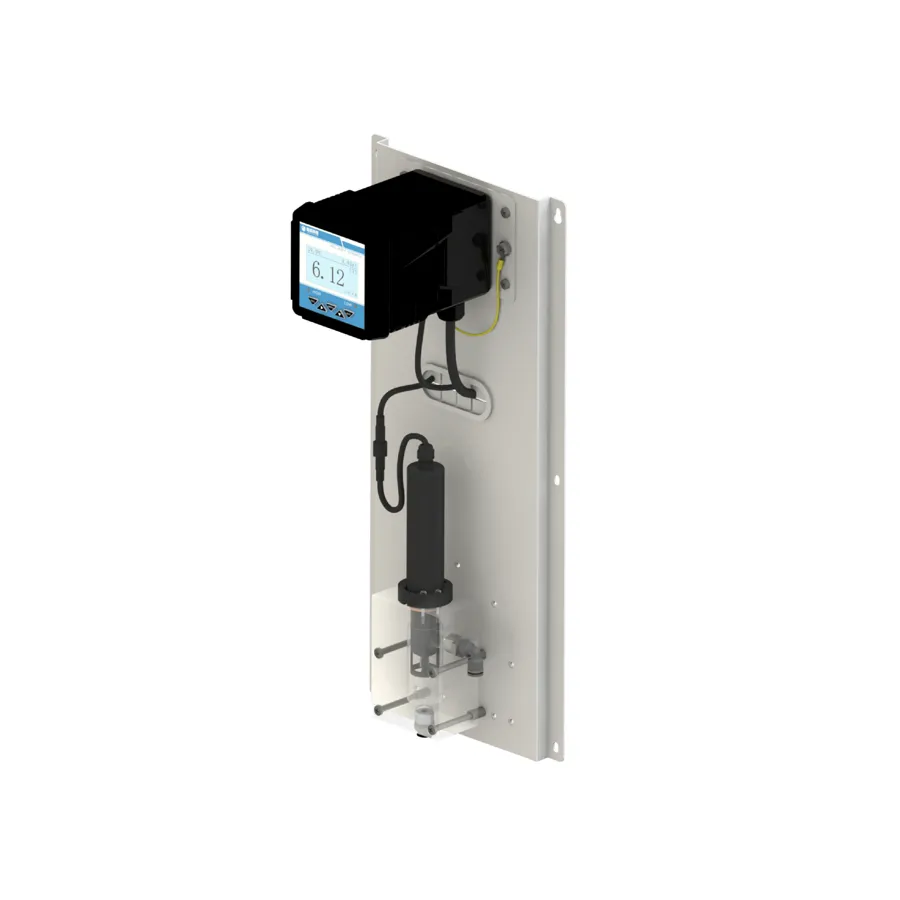

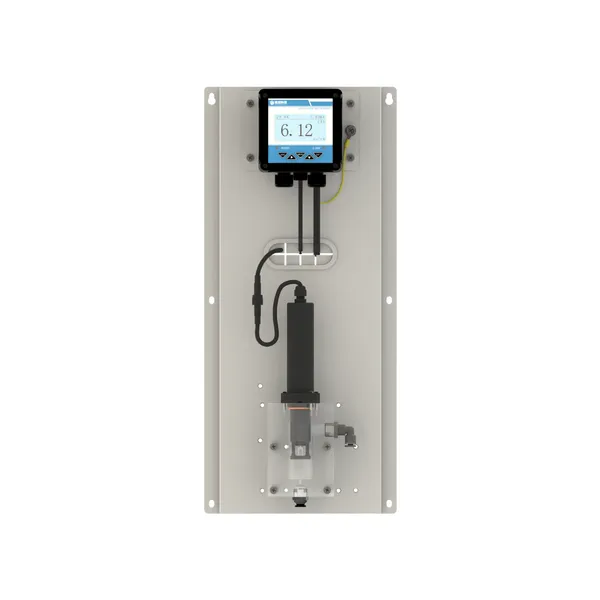

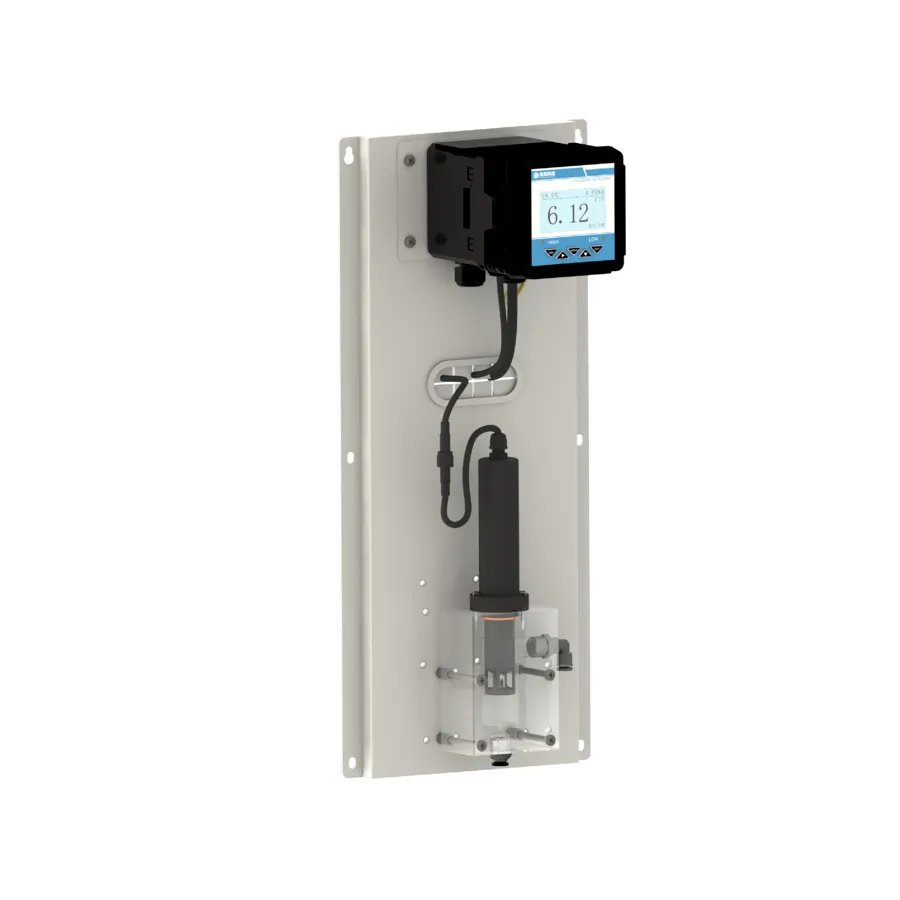

Conductivity / TDS Online Analyzer YG-NHA/01
The conductivity / TDS online analyzer is a product independently developed by YuanGan for online water quality monitoring. A universal controller works together with a digital conductivity / TDS sensor to continuously monitor conductivity and TDS in the solution. The data can be sent to a recorder through the transmitter output for remote monitoring and logging, or connected to a computer through the RS485 interface using the Modbus-RTU protocol, so the computer can monitor and record the instrument.
Typical applications
- Water Treatment Plants
- Distribution Network
- Secondary Water Supply
- Network Ends
- Swimming Pools
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Key features
- 01
Stable measurement
- 02
Fast response time
- 03
Long-term maintenance-free operation
- 04
Low-power design with temperature compensation
- 05
Isolated electrode power supply with strong interference immunity
Technical Specifications
| Controller parameters | |
|---|---|
| Peak power: | 6 W |
| Operating voltage: | AC100–240 V; DC24 V (optional) |
| Operating temperature: | 0–60°C |
| Operating humidity: | 10%~95%RH (non-condensing) |
| Storage temperature: | -15–65 °C (sensor not included) |
| Screen size: | 2.8 -inch LCD display |
| Relays: | One set each of high / low limit alarms (250VAC/3A), normally open contact relay |
| Digital output: | RS485, Modbus protocol |
| Analog output: | Isolated 4–20 mA transmitter output, max. loop 750 Ω, ±0.2% F.S. |
| Sensor parameters | |
| Measured parameters: | Conductivity/TDS, temperature |
| Range: | Conductivity: 0–20000 μS/cm TDS: 0–1000 mg/L, 0–10000 mg/L |
| Resolution: | Conductivity: 0.01 μS/cm TDS: 0.01 mg/L |
| Limit of detection: | Conductivity: 6 μS/cm TDS: 3 mg/L |
| Accuracy: | ±0.8%F.S. |
| Repeatability: | 0.4%F.S. |
| Measurement method: | Conductivity cell method (with temperature compensation) |
| Calibration method: | One-point calibration |
| Response time (T90): | ≤30 s |
| System parameters | |
| Backplate dimensions: | 230 × 510 mm (W × H) |
| Backplate material: | 304 stainless steel |
| Installation: | Wall-mounted |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
