Accessories & Flow Cells

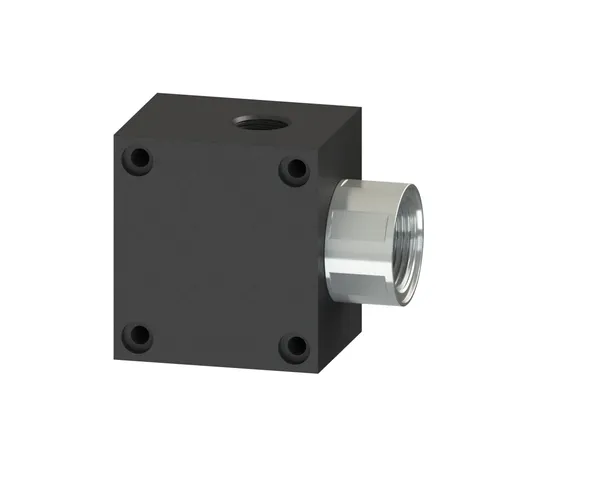

Single-Port Pressurized Flow Cell YG-QHN
YG-QHN
This pressurized flow cell is designed for YuanGan T-series low- and mid-range turbidity sensors.
Typical applications
- Data Center Liquid Cooling Systems
- Plant Raw-Water Inlet
- Semiconductor Industry
- Piped Direct Drinking Water
- Industrial Applications
yan@yuangankeji.com · +86-400-1688-667 · WhatsApp +86 151 7883 0466
Overview
This pressurized flow cell is designed for YuanGan T-series low- and mid-range turbidity sensors.
It meets liquid-cooling compatibility requirements.
Key features
- 01
Pressurized flow cell
Bubbles do not easily form
- 02
Compact size
Small footprint, easy to integrate
Technical Specifications
| System parameters | |
|---|---|
| Compatible sensors: | T1S and T2S turbidity sensors (G3/4 thread mounting) |

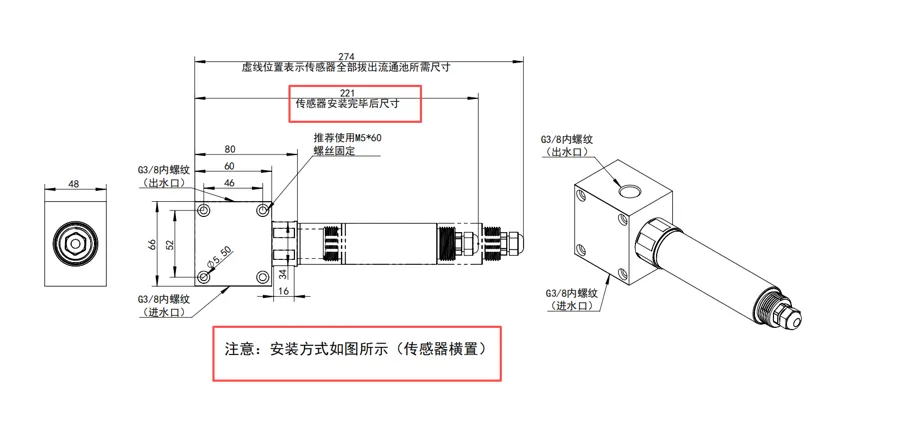

| Dimensions: | 80 × 66 × 48 mm (W × H × D, sensor not included) |
| Material: | PEEK+316L stainless steel |
| Sample flow rate: | 0.5–1 L/min (inlet flow must be kept stable) |
| (Note: specifications may change with product improvements; YuanGan reserves the right to modify them.) | |
